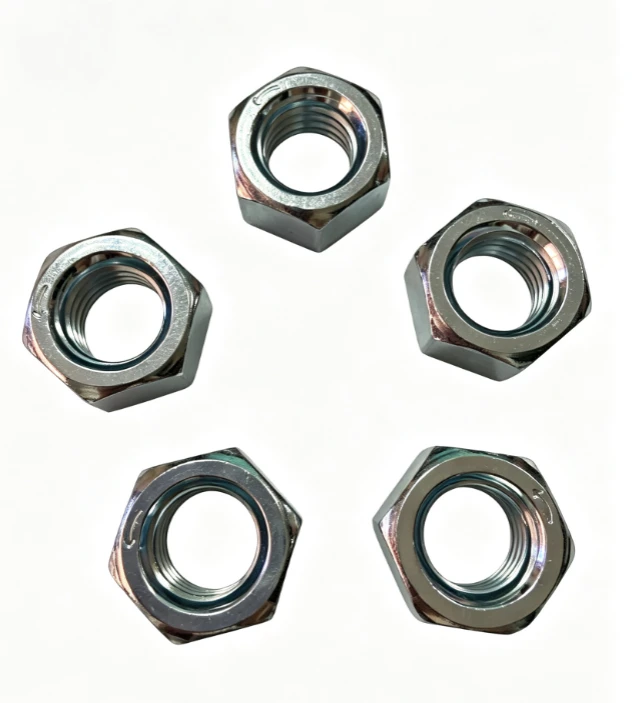

Sab laug tes xov ceev





Asmeskas sab laug- tes xov txiv ntoo ua raws li ANSI/ASME Unified Thread Standard rau American systems, muaj nyob rau hauv UNC coarse thiab UNF zoo xov variants. Lawv txoj xov helix kev taw qhia yog rov qab mus rau tus qauv txoj cai- tes xov, yuav tsum tau nruj nreem kaw thiab clockwise loosening. Nrog rau qib SAE lub zog ntawm 2/5/8, cov txiv ntoo no yog siv nrog sab laug- tes American bolts lossis ncej. Lawv feem ntau hais txog peb qhov kev sib tw tseem ceeb: tiv thaiv tus kheej -loo hauv cov khoom siv sib hloov, zam kev sib dhos tsis raug, thiab ua kom muaj kev hloov pauv bidirectional.













1. Tus kheej-xauv nyob rau hauv kev sib hloov, tiv thaiv kom tsis txhob xoob ntawm qhov chaw (qhov tseem ceeb tshaj plaws)

Lub zog tsim los ntawm kev sib hloov ntawm cov cuab yeej ua raws li lub zog xoob ntawm sab xis - tes xov txiv ntseej thiab lub xauv lub zog ntawm sab laug - tes xov ceev. Qhov ntev ntawm cov khoom siv khiav thiab qhov siab dua qhov ceev, qhov nruj ntawm cov xov sib txuas ua. Qhov no zoo tiv thaiv kev vibration tsis tu ncua thiab hloov lub zog tsis tas yuav tsum tau ntxiv lub caij nplooj ntoos hlav ntxhua khaub ncaws lossis nylon tiv thaiv -loosing rings, txo qhov kev pheej hmoo ntawm xoob thiab tsis ua hauj lwm hauv siab - nrawm rotating Cheebtsam.

Lub hauv paus ntsiab lus: Counterclockwise rotating shafts / sib tsoo lub log / impellers ib txwm zawm sab laug- tes threaded txiv ntseej los ntawm inherent kev sib txhuam thaum ua haujlwm.

2. Metric standard system, nrog lub zog thiab precision txuam European thiab American khoom

Unified UNC coarse suab thiab UNF nplua suab xov tshuab:

UNC Coarse Pitch (piv txwv li, 1/2-13LH): Lub suab loj dua, siab ua haujlwm siab, haum rau cov khoom siv hnyav thiab cov khoom siv ntxhib.

UNF Fine Pitch (piv txwv li, 1/2-20LH): Cov xov sib koom ua ke loj dua, lub zog tensile ntau dua, me me hloov chaw, mob siab rau kev sib kis tau zoo, hydraulic, thiab cov khoom siv dav hlau.

Cov qib muaj zog thiab kam rau ua tau zoo sib xws cov cuab yeej siv tshuab tuaj txawv teb chaws, engineering machinery, thiab thawj lub Hoobkas qauv ntawm American tsheb. Hloov cov thawj sab laug- tes fasteners yuav tsum tsis txhob hloov cov qauv.

3. Segregated pipeline media, nyab xeeb tiv thaiv kev teeb tsa tsis raug (rau roj / kua dej)

Cov kav xa hluav taws xob uas muaj hluav taws kub thiab tawg tau raug yuam kom nruab nrog US - tus qauv sab laug- tes xov txuas rau txiv ntseej, thaum cov pa oxygen thiab dej txias siv cov xov sab xis. Kev sib txawv ntawm lub cev ntawm cov xov kev taw qhia tiv thaiv cov neeg ua haujlwm los ntawm kev ua yuam kev txuas cov kav dej rau cov kav dej oxidizing tus neeg sawv cev, tshem tawm cov phom sij tawg los ntawm kev sib txuas rov qab. Qhov no yog qhov yuav tsum tau muaj kev nyab xeeb hauv European thiab Asmeskas kev lag luam roj thiab roj.

4. Bidirectional synchronous hloov kho mechanism, simplifying mechanical qauv

Paired zoo thiab rov qab threads (ib kawg sab laug- tes, ib kawg txoj cai- tes) daim ntawv tensioners/regulating lead screws. Thaum tig cov ntsia hlau, ob qho kawg ntawm cov txiv ntoo txav los ze zog ua ke los yog sib cais ib txhij, ua tiav tensioning, kev ncua deb, thiab nruab nrab hauv ib kauj ruam. Qhov no tshem tawm qhov kev xav tau rau ob qho kev hloov kho thiab tau siv dav hauv cov tensioning pulleys, khi rods, thiab pwm kho cov qauv.

5. Txawv kev txwv kev nyab xeeb, tiv thaiv kev sib tsoo

Ib qho -sab rotating Cheebtsam tsuas yog siv sab laug- tes xov txiv ntseej. Cov cwj pwm zoo ntawm kev ua haujlwm clockwise nrog cov wrenches zoo tib yam ua rau muaj qhov cuam tshuam tsis zoo - loosening es tsis txhob nruj. Tsis yog-cov kws tshaj lij tsis tuaj yeem yooj yim disassemble siab- nrawm tig qhov chaw muaj kev phom sij (sib tsoo / txiav spindles), txhim kho cov cuab yeej kev nyab xeeb. Ntau qhov kev kho mob saum npoo nrog rau cov hlau tsis muaj steel, kub-dip galvanization, thiab xim dub oxide txheej hloov mus rau qhov chaw ntub dej, corrosive, thiab sab nraum zoov.



Cov ncauj lus kom ntxaws daim ntawv thov (Piv txwv Metric System, sib xws nrog Cov Khoom Siv Hauv Tebchaws Europe thiab Asmeskas)
(1) General Rotational Machining Equipment (Feem ntau siv)

(2) Tsheb, tsheb kauj vab, thiab tsheb kauj vab (American Models)

(3) Roj thiab roj, kua dej, hluav taws xob tiv thaiv kev nyab xeeb accessories

(4) Kev Tsim Kho Machinery thiab Agricultural Equipment (US Standard Imported Equipment)

(5) Aviation, Precision Automation, Robotics

(6) Cov nkoj thiab cov khoom siv Marine









Peb tau ntawv pov thawj los ntawm ISO9001: 2015, IATF16949: 2016, thiab lwm yam ntawv pov thawj zoo thoob ntiaj teb.

Ntev - lub sij hawm lav zoo thiab muaj tag nrho tom qab - kev muag khoom tau muab.
